Electromagnetic Shielding & Conductive Braiding
Precision braiding solutions for signal security.

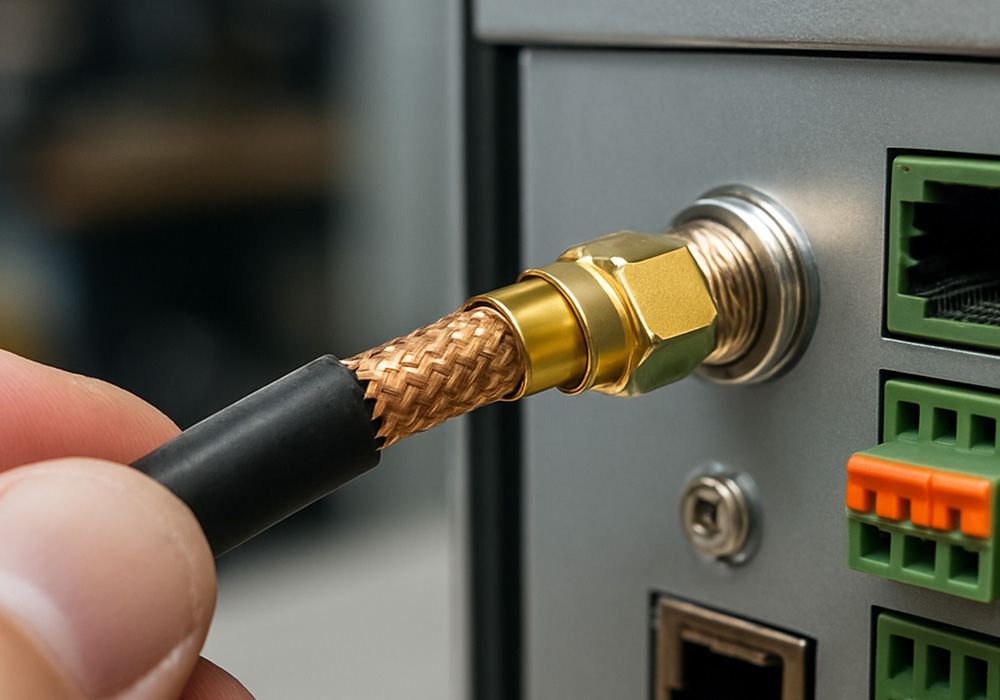

This application involves braiding to prevent electrical signals from being affected by external magnetic or radio frequency (EMI/RF) interference.
It is used as an outer shielding layer in cable and hose systems.
Medical
Automotive Cable Harness
▸ In-vehicle data cables
▸ Signal cables
▸ High-temperature resistant lines
Sensor Cable Production
▸ Industrial sensor cables
▸ Robotic cables
▸ Servo motor kabloları
Compatible Machines
TRS-16 W
High-Speed Tres Wire Braiding Machine
TRS-24 W
High-Speed Tres Wire Braiding Machine
TRS-32 W
High-Speed Tres Wire Braiding Machine
TRS-48 W
High-Speed Tres Wire Braiding Machine
Materials Used
- Tinned copper wire
- Aluminum wire
- Stainless steel wire
- Conductive wire combinations suitable for braiding
Line Requirements
- Precision braiding head suitable for fine-wire carriers
- Low-tension, controlled winding system
- Dual-head options for high-volume production
- Automatic stop sensors preventing wire breakage
- Optional: Integrated winding with inline take-up system
Application Advantages
- Provides maximum protection against EMI/RFI interference
- Ensures both mechanical and electrical safety thanks to its flexible and conductive structure
- Provides a homogeneous braid surface even on fine wires
- Maintains signal quality in industrial data and power transmission
Winding Unit
Controlled drum system for winding small and medium-diameter cables
Tension Control System
Adjustable pulley system ensuring precise constant tension in fine-wire braiding
Feeding System
Precision bearing pay-off system for continuous and stable wire unwinding
Wire Straightener
To improve the surface quality before braiding in multi-stranded cables.
Double Head Option
Efficiency-enhancing configuration for simultaneous braiding of two cables at the same time.
Precision Cutting Unit
Automatic cutting system after knitting (integrated or standalone end-of-line solution)
Plan Your Line
with Us
We offer not just a machine, but a complete system solution. Contact us to configure the most suitable inline setup for your application.
